Geri Dönüşüm Balya Ataşmanı

Name: Geri Dönüşüm Balya Ataşmanı
Brand: BNA

Geri Dönüşüm Balya Ataşmanı, BNA’nın 25 yıllık üretim tecrübesiyle imal edilen bir forklift ataşmanıdır. Ürün, işletmenizin forklift modeline ve kapasitesine uygun olarak üretilir; ayrıntılı teknik bilgi ve fiyat teklifi için bizimle iletişime geçebilirsiniz.

Teklif Formu

Formu doldurun, ekibimiz en kısa sürede size fiyat teklifi ile dönüş yapsın.

Hemen Ara WhatsApp

Teknik Özellikler

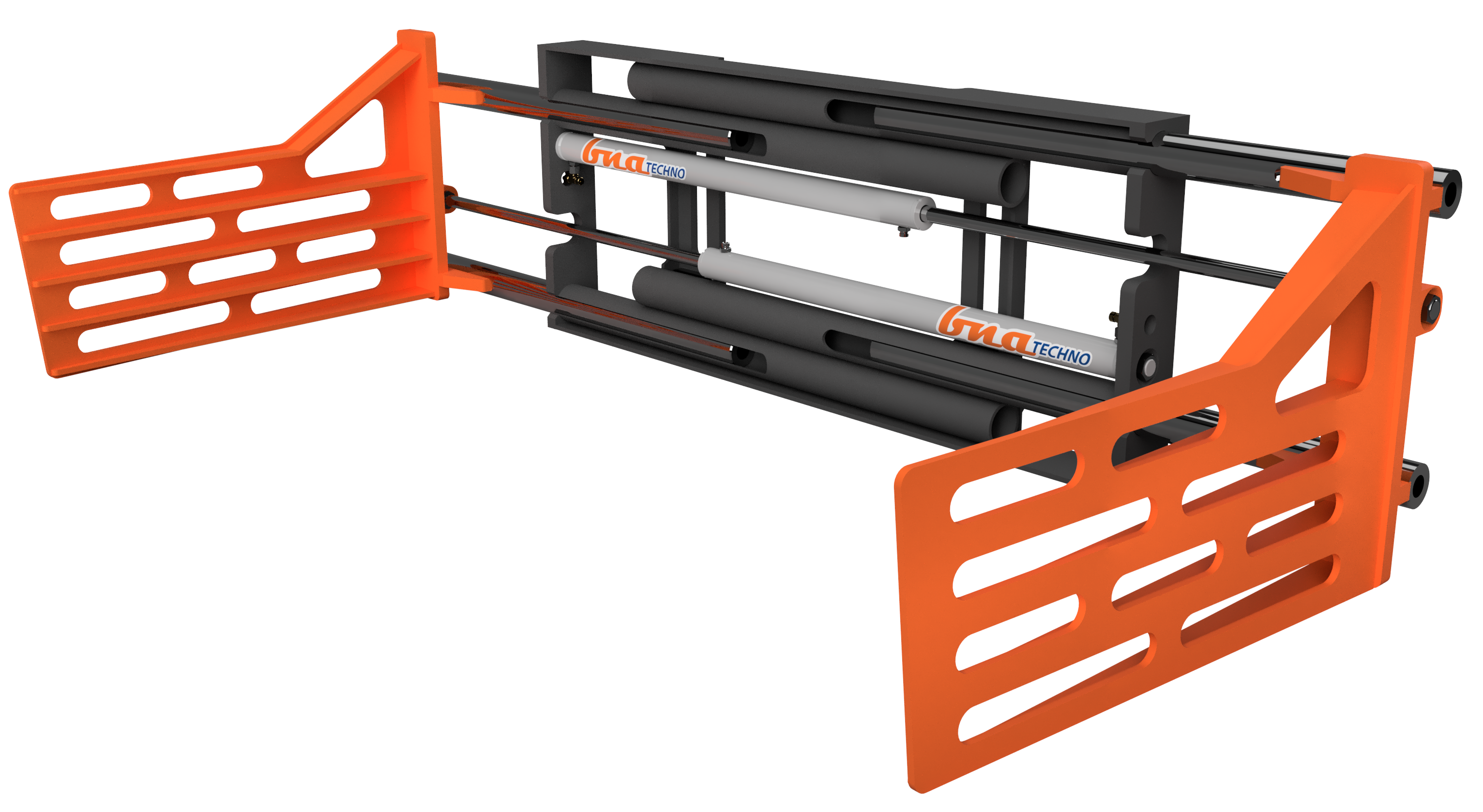

RECYCLED BALE CLAMP

PRODUCT CODE	CAPACITY Q · kg	LOAD CENTER LC · mm	MOUNTING CLASS ISO	OPENING RANGE A1 / A2 · mm	CHASIS WIDTH WC · mm	ARM LENGTH LA · mm	ARM THICKNESS WA · mm	ARM HEIGHT HA · mm	LOST LOAD INSTANCE E · mm	C.o.G. C · mm	WEIGHT M · kg
CBR2A-Q16-40.160	1600	500	2A	400/1600	1000	1000	30	350	138	258	420
CBR2A-Q16-50.170	1600	500	2A	500/1700	1000	1000	30	350	138	258	425
CBR2A-Q16-60.180	1600	500	2A	600/1800	1200	1000	30	350	138	257	430
CBR2A-Q16-45.180	1600	500	2A	450/1800	1200	1000	30	350	138	257	434
CBR2A-Q16-55.190	1600	500	2A	550/1900	1200	1000	30	350	138	257	439
CBR2A-Q16-60.200	1600	500	2A	600/2000	1100	1000	30	350	138	262	435
CBR2A-Q16-50.200	1600	500	2A	500/2000	1300	1000	30	350	138	255	460
CBR2A-Q22-45.180	2200	500	2A	450/1800	1200	1000	30	350	148	257	430
CBR2A-Q22-50.190	2200	500	2A	500/1900	1200	1000	30	350	148	257	434
CBR2A-Q22-50.200	2200	500	2A	500/2000	1300	1000	30	350	148	255	460
CBR2A-Q22-55.210	2200	500	2A	550/2100	1300	1000	30	350	148	255	468
CBC3A-Q27-45.180	2700	500	3A	450/1800	1200	1000	30	420	148	250	530
CBC3A-Q27-50.190	2700	500	3A	500/1900	1200	1000	30	420	148	250	540
CBC3A-Q27-50.200	2700	500	3A	500/2000	1300	1000	30	420	148	302	565
CBC3A-Q27-55.210	2700	500	3A	550/2100	1300	1000	30	420	148	302	570
CBC3A-Q27-60.220	2700	500	3A	600/2200	1300	1000	30	420	148	302	565
CBC3A-Q27-70.230	2700	500	3A	700/2300	1300	1000	30	420	148	302	565
CBC3A-Q27-80.240	2700	500	3A	800/2400	1300	1000	30	420	148	302	570
CBC3A-Q27-50.225	2700	500	3A	500/2250	1450	1000	30	420	148	298	590
CBC3A-Q27-50.235	2700	500	3A	500/2350	1550	1000	30	420	148	294	595
CBC3A-Q27-50.250	2700	500	3A	500/2500	1650	1000	30	420	148	290	605
CBR4A-Q35-50.200	3500	500	4A	500/2000	1300	1200	30	420	148	302	565
CBR4A-Q35-50.210	3500	500	4A	500/2100	1300	1200	30	420	148	302	570
CBR4A-Q35-60.220	3500	500	4A	600/2200	1450	1200	30	420	148	298	590
CBR4A-Q35-50.225	3500	500	4A	500/2250	1450	1200	30	420	148	298	595
CBR4A-Q35-50.235	3500	500	4A	500/2350	1550	1200	30	420	148	294	595
CBR4A-Q35-50.250	3500	500	4A	500/2500	1650	1200	30	420	148	290	605

1 hydraulic function.
The attachment is used for loading, unloading and storage of scrap plastic, cotton, piece cloth and pressed metal scrap bales.
Arm, chassis and other dimensions of attachment can be changed according to customer request.
Optional features, such as hydraulic jack, integral sideshifter valve can be added.
